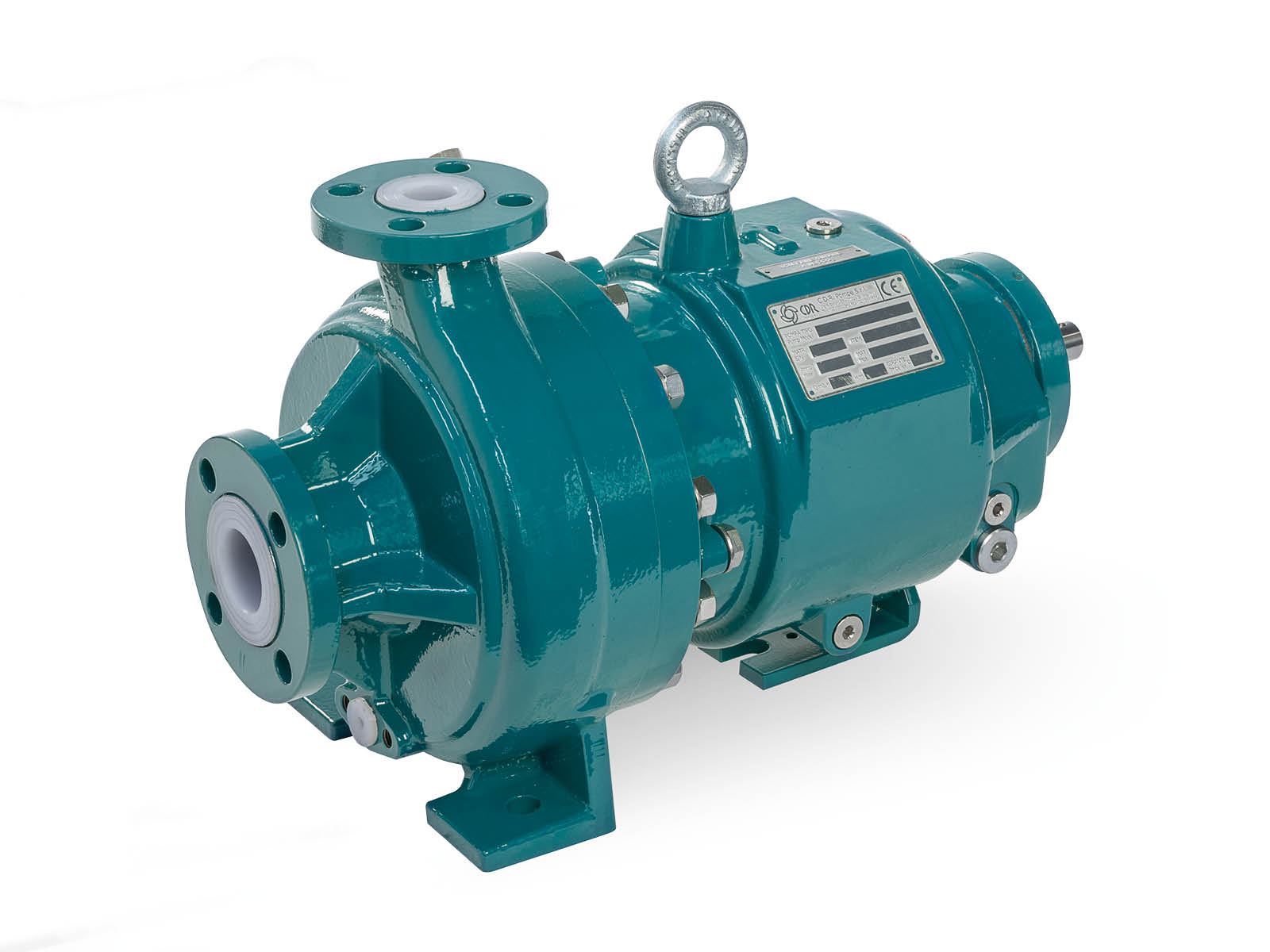

DTN ASME – magnetic drive process pumps
The configuration of the synchronous unit is based on a magnet ring assembly built to magnetically couple with an inner magnet ring assembly. These two magnet rings are locked together by the flux of attracting magnet poles flowing through the containment isolation shell.
The new dynamic shaft design ensures greater pump reliability and lower axial thrusts along the entire performance curve.
Main technical specifications of the model:
| Sealing System: | Magnetic Drive |
| Design: | ASME B73.3-2015 |
| Standard: | ASME B73.3-2015 |
| Casing Material: | ETFE Lined |
| Bushings/Shaft Material: | SSIC |
| Casing Type: | Radially split-Volute Casing |
| Impeller Material: | ETFE Lined |
| Impeller Type: | Closed |
| Nozzle Position: | End suction |
| Execution: | Horizontal – Long-Coupled |
| Pull-out Design: | Back pull-out |
| Heating Jacket: | NA |
| Connection Type: | Flange |
| Flange: | ASME B16.5 Class 150 |
| Suction Characteristics: | Non-priming |
| Lubricant Type: | Oil lubrication |
| Maximum Pressure Rating @20°C: | PN 16 |
| Fluid Temperature Range | -30°C / +120°C |
| Maximum Head @ 2900 RPM: | 105m |
| Maximum Flow Rate @ 2900 RPM: | 108 m³/h |
| Viscosity Range: | 0.5 cSt – 150 cSt |
| Maximum Installed Power: | 22 kW |
| Sealing System: | Magnetic Drive |
| Design: | ASME B73.3-2015 |
| Standard: | ASME B73.3-2015 |
| Casing Material: | ETFE Lined |
| Bushings/Shaft Material: | SSIC |
| Casing Type: | Radially split-Volute Casing |
| Impeller Material: | ETFE Lined |
| Impeller Type: | Closed |
| Nozzle Position: | End suction |
| Execution: | Horizontal – Close-Coupled |
| Pull-out Design: | Back pull-out |
| Heating Jacket: | NA |
| Connection Type: | Flange |
| Flange: | ASME B16.5 Class 150 |
| Suction Characteristics: | Non-priming |
| Lubricant Type: | No |
| Maximum Pressure Rating @20°C: | PN 16 |
| Fluid Temperature Range | -30°C / +120°C |
| Maximum Head @ 2900 RPM: | 105m |
| Maximum Flow Rate @ 2900 RPM: | 108 m³/h |
| Viscosity Range: | 0.5 cSt – 150 cSt |
| Maximum Installed Power: | 22 kW |
